Electric Commercial Fruit Juicer Machines

Full Automatic Electric Commercial Fruit Juicer Machines , Juice Extracting Machine

Konmax Juicer Machine Description:

The Juicer machine would make extracting juice from oranges,pomegranate ,limes , grapefruits etc which size from 40-80 mm diamater .This machine working theory is using concave and convex ball squeezing to get juice flow .

Konmax Juicer Machine Application:

Commercial orange juicer can be used in wide range like bar,restaurant,drink shop , home ,supermarket ,gymnasium,entertainment ,hospital etc

Konmax Juicer Machine Specification:

Power supply: 110-120V 60HZ
Power parameter: 120W
Material: Stainless Steel + Plastic
Size of orange require: 40-80mm
Dimension: 17" x 14" x 31"
Output: 20-22 unit / per min
Weight: 42KG / 92.59lbs
Package Content
2 x A pair of peeling implement
1 x Cross implement
1 x 8-10mm spanner
1 x Electronic supply

Konmax Juicer Machine Safety Notice:

Avoid dangerous please followed by the next step:

1. Ensure read and understand all the explanations.

2. Only use the specifically marked AC power source(230V/50HZ,120V/60HZ).

3. For the safety purpose,only use connect power to the grounded connector plugs.

4. Ensure machine is disconnected from main power and turn off the power before you clean it.

5. Do not touch the power connect plug.

6. Only used for citrus and lemon. Do not used for other fruit.

7. Do not use for peach, mango etc, in case it damage.

8. Do not put your hands in the machine while it working.

Konmax Juicer Machine Operation Instruction:

1. Place the machine on the stable table, connect power plug to a grounded connector plug.

2. Safety check before you turn on the machine:

1) If the nut (4 units) screw down properly.

2) If place the knife rest correctly (press it on the bottom).

3) Place the cover on, screw down two side nut (2 units).

3. It can be used after turn on the power.

4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh juices, filtrate automatically

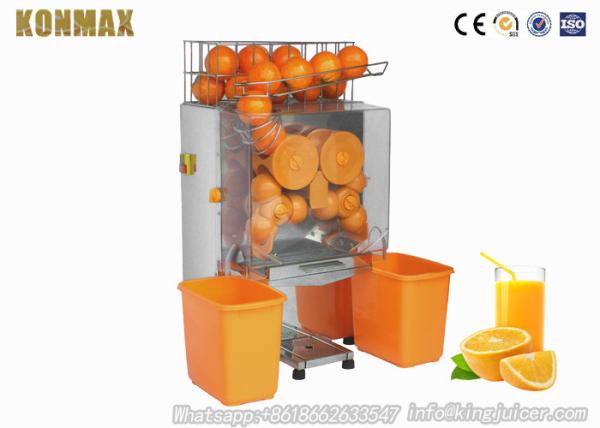

Konmax Juicer Machine Detailed Photo:

Konmax Juicer Machine Accessory:

A pair of peeling implement(two),one of 5A fuze,one of cross implement, one of 8-10mm

spanner,one of electronic supply.

Konmax Juicer Machine FAQ:

1)What is your delivery time?

Sample order : 3~5 days , bulk order : 10-15days according to customer requirements

2) Do you have any certification?
We have CE, RoHS, UL

3) How long is the warranty?

One years warranty for the machine, and will provide technical advisory service all life.Even can provide

main parts by free.

4) Can you make OEM or ODM?

Yes,we can make the OEM and ODM for you if your quantity is big .

5) How long will it take to execute my order?

This depends on the size and complexity of the order. Please let us know the quantity and codes of the

items so that we can advise a production schedule.

6) What is the package?

Brown or white box with label

Customized gift box &printing logo are available with some extra cost

7) Are you a trader or manufacturer?

We are both. we have our own factory and over 100 trusted partner factories .

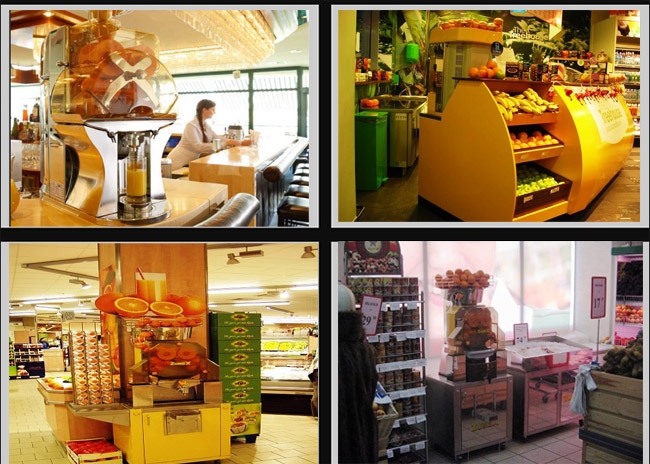

Konmax Juicer Machine Application Photo:

fruit and vegetable juicer machine

orange juice juicer
