Konmax Cold Drink Dispenser Description:
1.All the parts using in cold drink dispenser are environment friendly
2.High quality compressor lead to cooling & heating fast and stable( cooling & heating during 25—45mins)
3.juicer dispenser machine with stainless iron panel complete mirror design
4.All the part inside cold-hot juice machine welding by copper tube , in order to Avoid rust
5.cold drink machine divided into cool & hot , cooling only ,
6.mixing and Spraying design
7.One , two and three tank to choose
8.The tank is made of PC (Polycarbonate) material which is high/low temperature resistance, unbreakable, innoxiously, antifoaming, good flexibility and removable.
10.Cold drink machine is low noise ,cooling fast.
Konmax Cold Drink Dispenser Application:
- Widely used in hotels, coffee hall, enterprises and institutions and individual cold drink shops.
- Drink Dispenser with tap can produce cold drinks.
- Mixing power is huge, can mix soya-bean milk, yogurt and bring the enrichment of the pulp drinks.
- Classic bubbler style, vertical spray dispenser with magnetic driven agitators.
- The piston discharging valve, larger particles are not easy to jam.
- Superior engineering allows full beverage cooling right down to the last drink.
- Stainless steel, dripless pouring valves are sanitary and easy to use and maintain.
- Better design and more stainless steel allow easier cleaning and less maintenance.
- Humanized handle, easy to use, comfortable and covenient.
Konmax Cold Drink Dispenser Specification:
| Material | Stainless steel R304 | Machine size | 330*450*670MM |
| power | 280/800W | Packing size | 370*460*700MM |
| Cold-beverage temperture | 7 to 12 degree | Hot-beverage temperature | 52 to 58 degree |
| Tank material | PC | Model | LSJ 10L X2 |
| Condenser | with Copper tube | Certificate | CE |
| switch | LCD switch | Packing Way | Carton +foam inside |
| Electrics Standard | 110V-220V,50-60HZ | Drive Mode | Magnetic rotating |
| G.W | 24KG | N.W | 22KG |
| 40' HQ loading | 530PCS | FOB Shanghai | USD |
| 20' FT loading | 210PCS | Warranty | 1 Year |

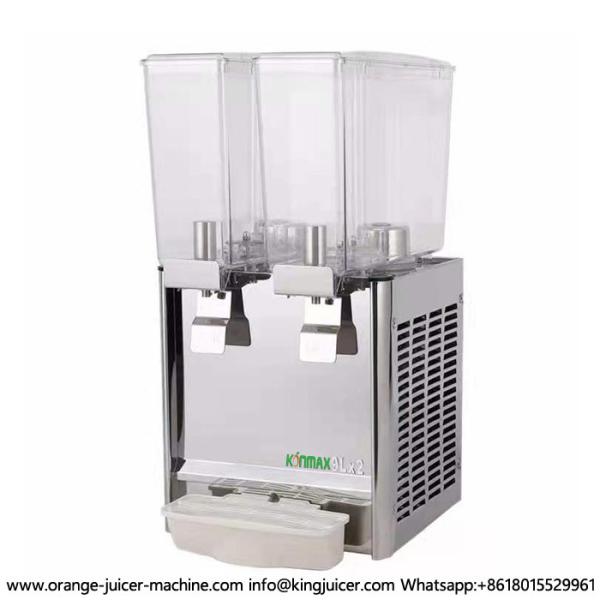

Konmax Cold Drink Dispenser Detailed Photo:
How to use the cold beverage machine
1.To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
2.The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
3.Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
4.To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working .
Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the outlet mouth .
6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature cotroller .And when it increases, it will start automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .
